Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly

Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly
Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly

Grote Afbeelding :  Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly

Productdetails:
Plaats van herkomst: China
Merknaam: Charmhigh
Certificering: CE
Modelnummer: CHM-F830
Document: 830(up4+down4).pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: $1980
Verpakking Details: Houten kist
Levertijd: 5-8 dagen
Betalingscondities: T/T
Levering vermogen: 100 per maand
Contact

Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly

beschrijving
Afmetingen: L2500x W650x H1400 Verwarmingszone -hoeveelheid: boven4/onder4
Verwarmingsgebied: 1400*300 mm Verwarrende tijd: Rond 20 mins
Netto gewicht: 220 kg Afleveringsmaat: Verplaatsing van de mazen
Markeren:

220kg Net Weight SMT Reflow Oven

,

20 mins Heating Up Time Hot Air Soldering Machine

,

380V Power Supply PCB Assembly Machine

Small SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly

Vertical SMT Reflow Oven 8 Temperature Zones 1400*300mm Hot air Soldering Machine - Lead-free

  • Competitive price for quality
  • More than 10 years manufacturing experience
  • One of the Leader of Smt machine manufacturers in China
Technical Specifications
Model No. CHM-F830
Number of Heating Zones Up 4 + Bottom 4
Length of Heating Zones 1400mm
Heating Pattern Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor)
Number of Cooling Zones 2 Plasma DC Fan
Max. Width Of PCB 300mm (stainless steel mesh belt)
Conveyor Direction L->R
Conveyor Height 880±20mm
Transport Mode Mesh Belt
Conveyor Speed Range 0-2200mm/min
Power Supply 5 Wire, 3 Phase, 380V 50/60Hz
Start Power 10KW
Power Consumption Approx 2.5KW
Warming Time Approx 15-20 mins
Temp. Setting Range Room Temp.- 380℃
Temperature Control Method Instrument-controlled
Temperature Difference Between Adjacent Zone 70 ℃, can correspond to the highest standards of lead-free process.
Temperature Control Precision ±2℃
Temperature Deviation on PCB ±2℃
Abnormal Alarm Temperature abnormal (too high or too low after the constant temperature keeping)
Open Way Manual
Dimension(L*W*H)mm 2500*650*1400MM
Weight Approx220Kg
CHM-F830 Reflow Oven Features
  • The heating system is unique, advanced and long-life.
  • High efficiency and energy-save nickel cauterize heating pipe is used in heating system, strong hot air cycle structure, making PCB and components heating equally, high efficiency and rapid heating speed.
  • The intelligent micro-computer precision controller, through intelligent operation of PID, control heating automatically, temperature controlling function can detect the changing of temperature, and then make inner temperature stable by controlling. Modular design, easy to repair and assembly.
  • Import high temperature and high speed motor are used, stable operation, small tremble and low noise. The efficiency be improved greatly, extending the using time. The heating system use import components to make sure high stability and reliability of all system.
  • Reliable and stable transmission system, stable operation driver, and the speed range is 0-2000mm/min.
  • Stable operation special stainless steel net chain is durable and wearable. So it didn't need to be change for a long time that can save cost.
  • Stable and reliable electronic controller system.
Product Images

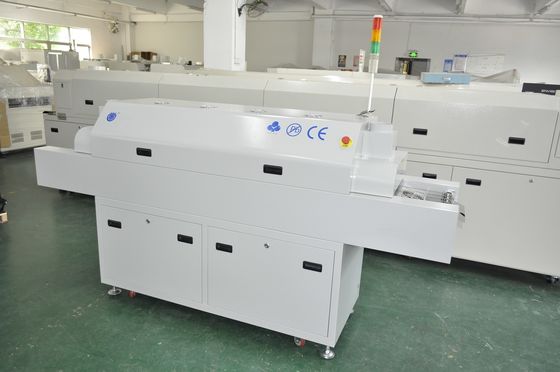

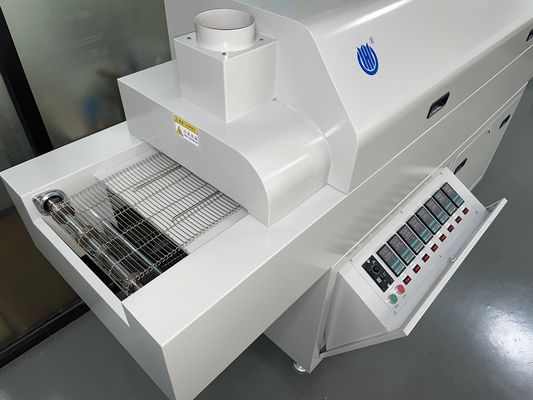

Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly 0

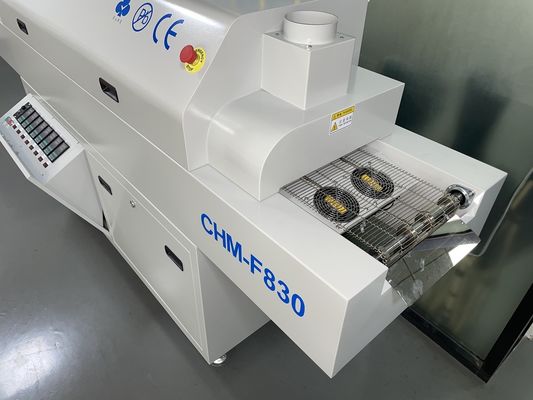

Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly 1

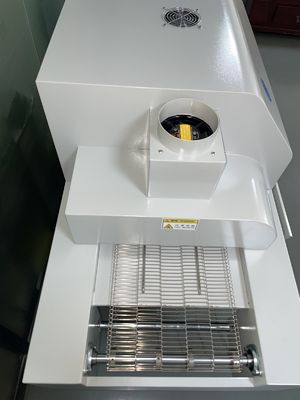

Small Vertical SMT Reflow Oven for Electronics CHM-F830 Hot Air Soldering Machine PCB Assembly 2
Warranty & Support

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.

Technical Support

Kimi Liu: Mob: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos

If you want to see more information and videos, please contact us by E-mail.

We will response you at the first time.
