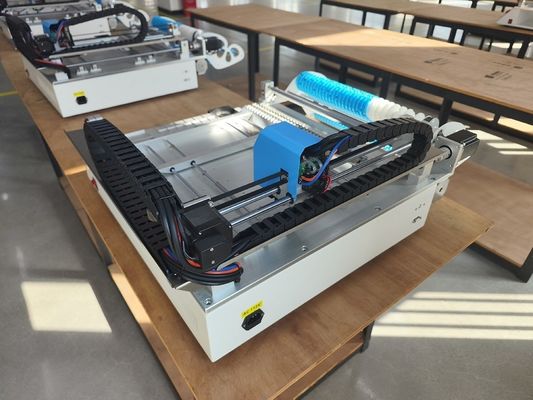

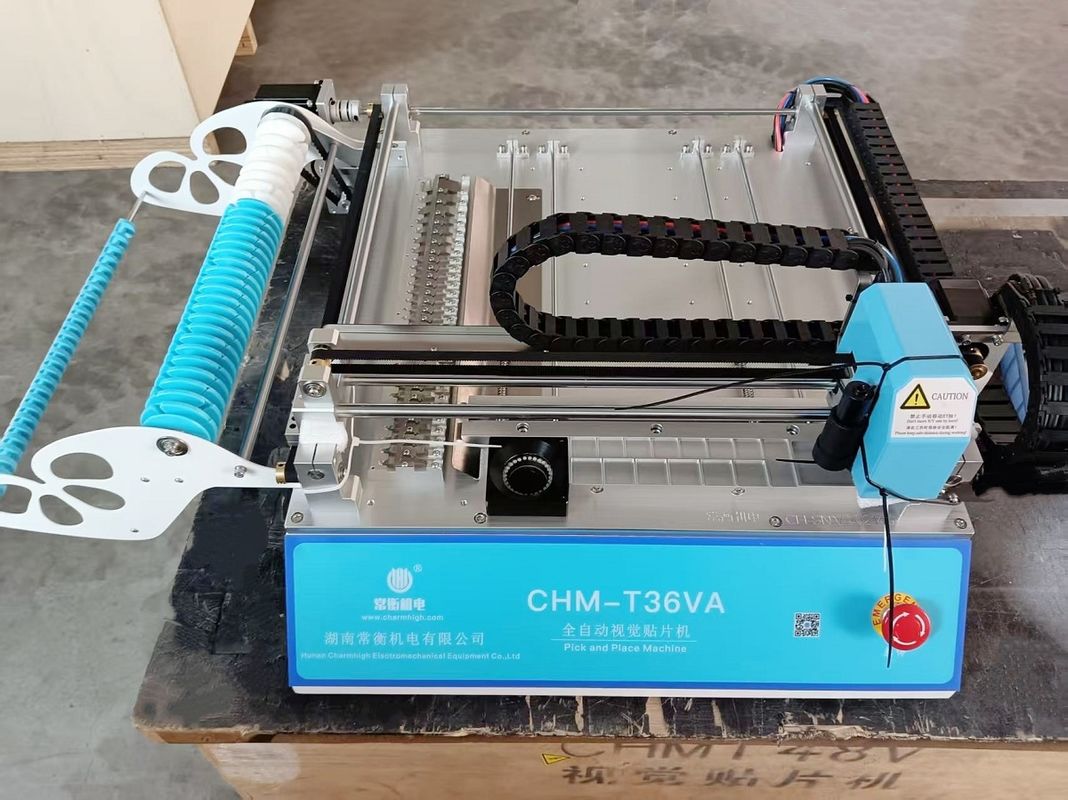

PC Control Desktop CHMT36VA SMT Pick and Place Machine 29 Feeders 2 Heads Classic Model
Key Features
- Double vision cameras for accurate IC placement
- CE certified with English language interface
- 220V/110V compatible power supply
- Windows 7/10 compatible PC control
Technical Specifications
| Attribute |
Value |
| Tape feeder |
1-29pcs |
| Place head |
2 heads |
| Speed |
Vision on: 2800cph |
| Accuracy |
0.025mm |
| External PC required |
Yes, with Windows 7/10 system |
| PCB size |
10*10mm~355mm(L)*355mm(W) |
| XYZ Axis travel |
400mm(X)*460mm(Y)*15mm(Z) |
| Highest component |
5mm |
Product Description
The CHMT36VA SMT Pick and Place Machine is ideal for low-volume, high-mix production of 0402 and 0603 based designs. It features dual vision cameras for precise component placement and accepts Eagle BRD files to dramatically reduce setup time.
Working Videos
Detailed Specifications
Model: CHM-T36VA
PCB area: 10mm*10mm - 355mm*355mm
X Y axis Travel: 420*460mm
Z axis moving range: 15mm
Placement heads: 2pcs
Feeders: 8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs, Front bulk IC tray=14pcs, custom IC tray
Vision system: Dual cameras (up & down cameras)
Mounting speed: 4000cph (vision off); 2800cph (vision on)
Mounting precision: ±0.025mm
Standard Accessories
- Pick and Place Machine CHMT36VA 1
- Juki nozzle total 4pcs (503, 504, 505, 506 size)
- 8G USB driver 1 (software included)
- Power Cord 1
- Pull needle 2
- Solenoid for pull needle 1
- Camera positioning adjust black board 1
- Hex wrench 6
- Tweezers 1
- Brush 1
- Pen for touch screen 1
- Fixture for IC tray 4
- Grease 1
- English user manual 1
Applications
Household appliances, auto electronics, power industry, LED industry, security, instruments and meters, communications, intelligent control, Internet of Things (IOT), and military industries.
Product Images
Service & Warranty
1-year warranty from purchase date with lifetime service. Each machine is 100% tested before shipping. We provide spare parts, online Q/A, troubleshooting support, and technical advice.
Technical Support
Kimi Liu
Mobile/WhatsApp: 0086 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube: www.youtube.com/kimiLiuCharmhigh
Purchase Information
Buy directly from our online store: CHMT36VA Pick and Place Machine
